1. Introduction of the Machining Center
The SH series horizontal machining center, standard configuration with Heidenhain system. The machining center features high positioning accuracy, fast response speed, and the ability to perform four-axis machining. It also has the functions of automatic measurement of parts and tools. It can achieve efficient and automated processing.
The machining center is composed of bed, column, slide, rotary table, electric spindle, pneumatic system, lubrication system, hydraulic system, cooling and chip removal system, CNC system, detection system, and fully enclosed protection system. The machining center moves left and right through the slide (X-axis), moves forward and backward through the rotary table (Y-axis), moves up and down through the milling head (Z-axis), rotates through the rotary table (C-axis), and rotates through the electric spindle (W-axis). All movements are automatically controlled by the control unit.
The main castings of this machining center are made of high-strength cast iron materials shaped by resin sand. It adopts a reasonable box body and reinforcement structure, which has good bending resistance, good rigidity and excellent stability. The main movement of the machining center adopts the high-speed electric spindle, and the automatic tool release and clamp of the spindle can be realized. The X, Y, and Z axes are driven by servo motors, which directly drive the ball screws. The C-axis rotation is driven by a torque motor, making the transmission system have very high motion accuracy and transmission rigidity.
2. Machining Center Technical Parameters
1. In the above table "()" is selected configuration.
2. If the parameters and purchased parts of this machine are optimized and adjusted, the contract and technical agreement signed shall prevail.
3. Our company can flexibly make adjustments to machine parameters and structures according to the specific process requirements of the user.

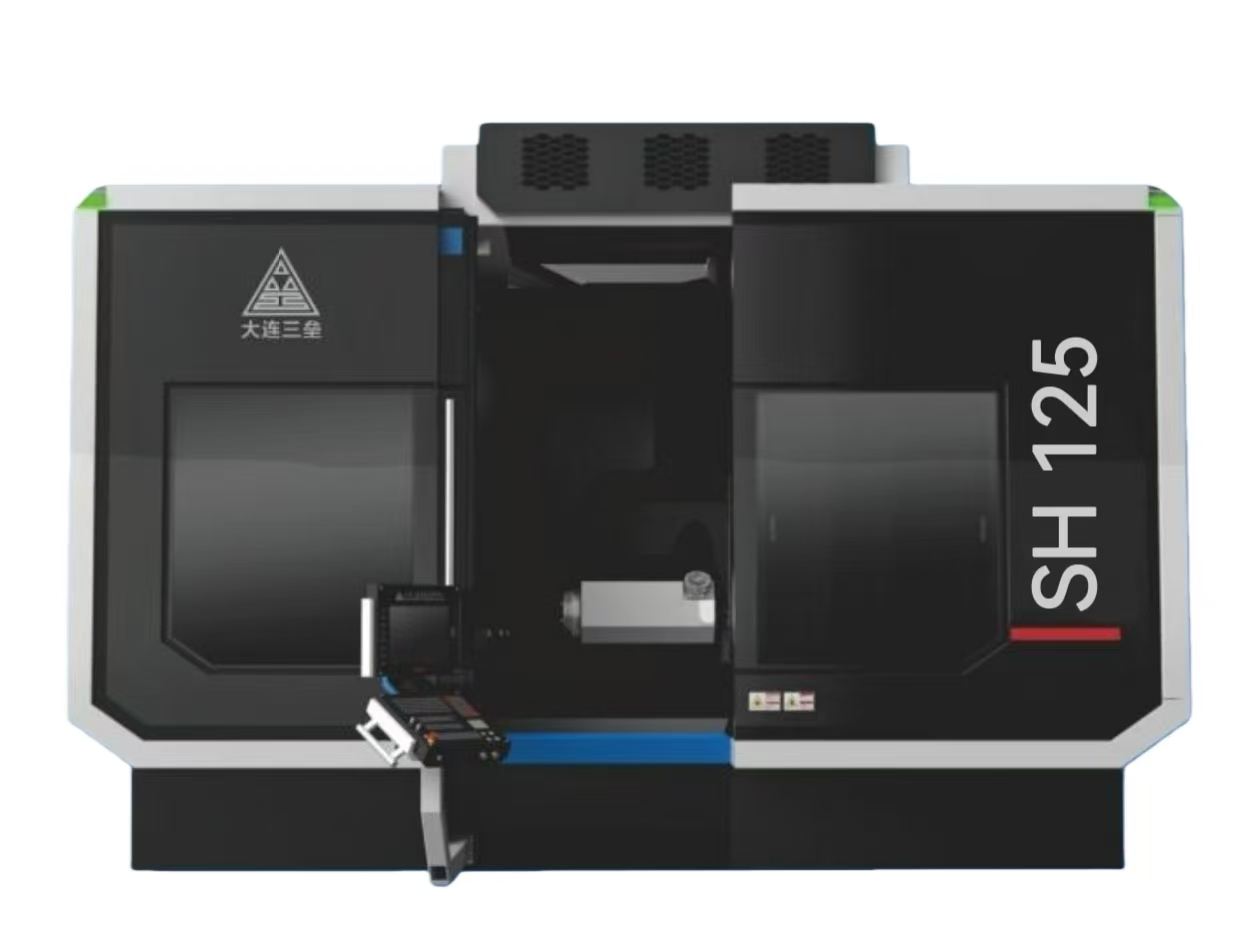

3. Structure diagram of the Machining Center
|
